University of Hail IT-Cyber Room, Saudi Arabia

F1

The University of Hail is a Saudi public university located in the city of Hail. The university was established in 1426 AH and is under the supervision of the Saudi Ministry of Education.

Roomdimensions (RDI) has developed this magnificent control room that ensures that the organization's systems, networks, data and applications all connect and function properly.

The design of the control room incorporates ergonomic and aesthetic features that improve health and safety for the operators taking into account their position and that of their equipment being able to interact with each other without any hindrances during emergencies.

RDI, through the use of the T-LINE consoles, ensures the optimal management of the dense concentration of equipment in the operating environment.

Scope of the Project:

+ Control room design

+ Bill of materials specification

+ Control room set up management

+ Consoles manufacturing and installation

+ 24x7 ergonomic chairs supply

+ Video wall cladding installation

+ 4YC video collaboration system

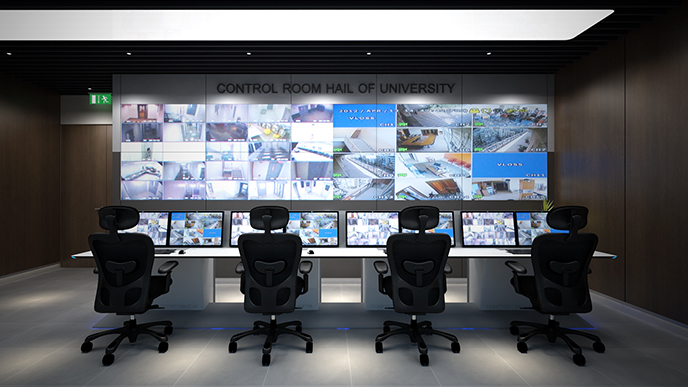

VSS ROOM

VSS ROOM
Number of workposts: 4
Chosen Solution: T-LINE console
Distribution: 1x 4 operators console

Ergonomics: CXO chairs, 2 single monitor supports for operator, connectivity spots on table board, compartment for electronics.
Audiovisuals: Operation workposts: 2x 24” monitors/operator
Video wall: 5x2 55” LCD

IT ROOM

IT ROOM
Number of workposts: 7
Chosen Solution: T-LINE console
Distribution
1x 4 operators console + 1x 2 operators console + 1 supervisor console
Ergonomics: CXO chairs, 2 single monitor supports for operatror, connectivity spots on table board, compartment for electronics.
Audiovisuals: Operation workposts: 2x 24” monitors/operator

Video wall: 5x2 55” LCD

The control Center is provided with the 4YC solution, based on the codification and decodification of all the video signals by means of a dedicated and exclusive net, having the option to visualize any of the signals of this net directly into the work posts of the control room and over the video wall.

F1

The 4YC platform allows each screen of the operator's workstation to be subdivided into multiple windows and to switch the keyboard and mouse dynamically, obtaining immediate control of each source.


ADVANTADGES OF 4YC



- The 4YC platform allows the creation of as many users as desired.



-Saves the configuration of any user



-An active management of the audiovisual system of the control center can be carried out, operating directly on it through specific control software (4YC-Dsworks), whose interface is 100% customizable for each project.



-No type of external central server is required for user management.


-The installation of any type of software is not required on the equipment to be monitored.


-No extra equipment is required for signal switching.



-Possibility to control third party elements such as air conditioning, lighting, sound, curtain opening, etc.
